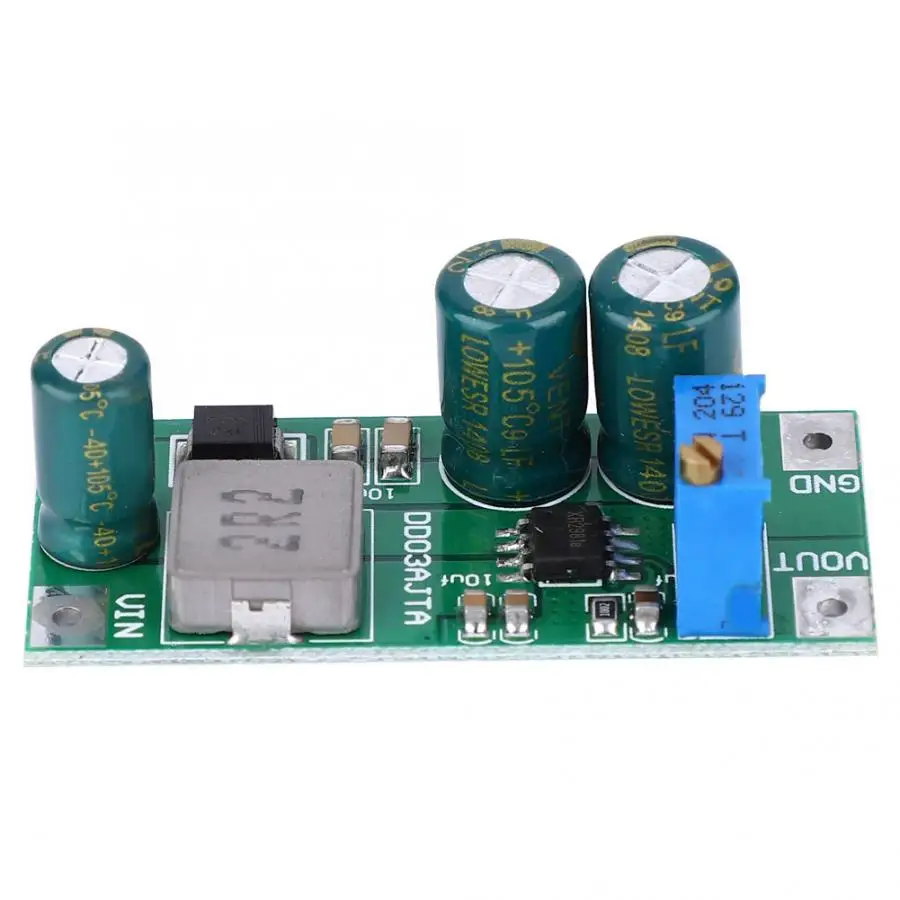

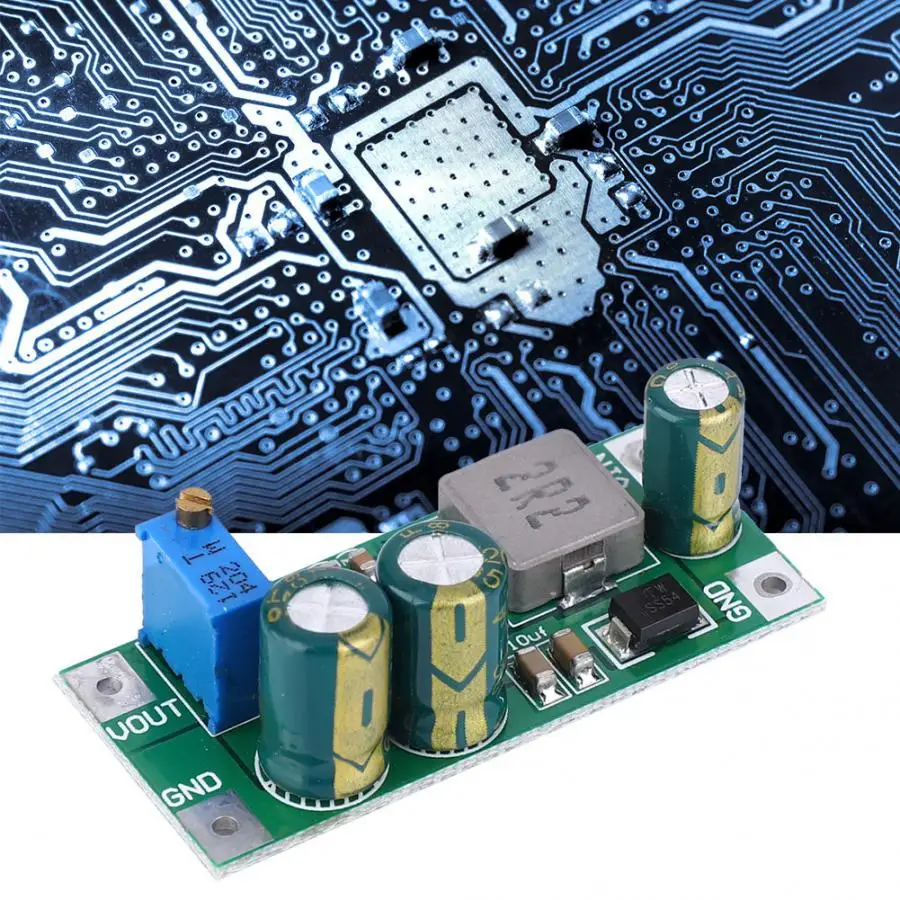

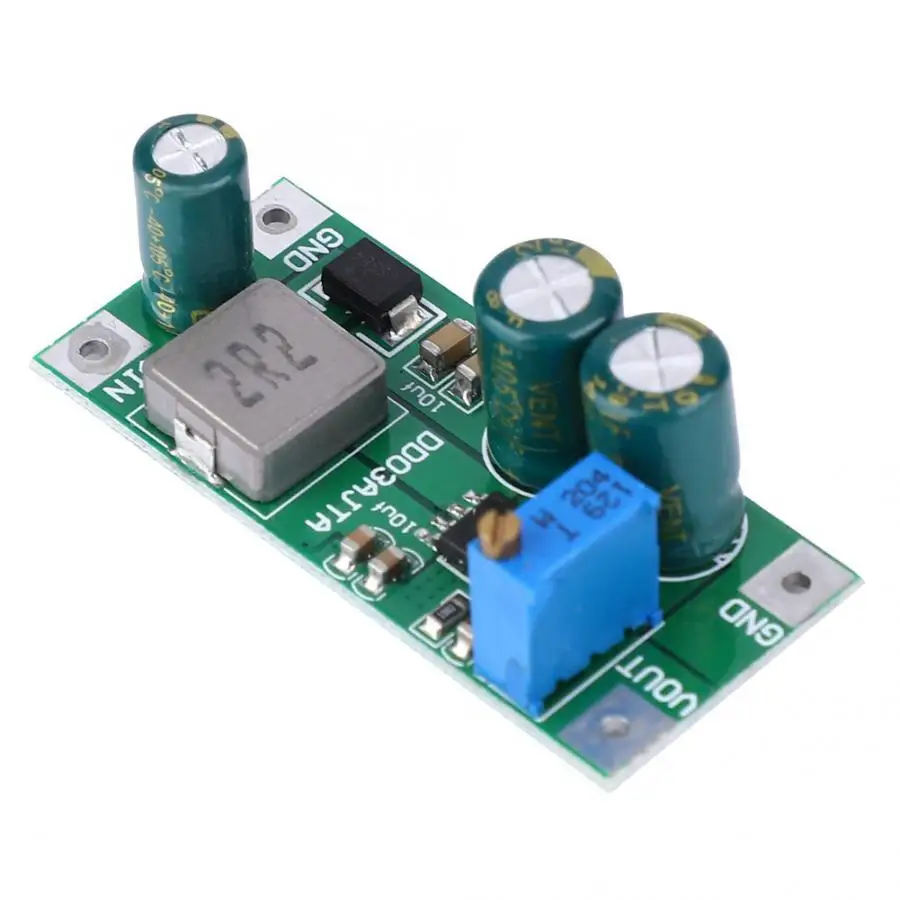

Купить 6A DC 2,7-5,5 В до 3,5-24 в Boost повышающий преобразователь 30 Вт регулируемый Удлинительный модуль питания

Описание

6A DC 2,7-5,5 В до 3,5-24 в Boost повышающий преобразователь 30 Вт регулируемый Удлинительный модуль

Особенности:

2,7-5,5 В Входное напряжение, 3,5-24 В регулируемое выходное напряжение. Легко Отрегулируйте выходное напряжение переменным резистором. При выключении температуры защита от недостаточного напряжения и короткого замыкания. Изготовлен из высококачественных электронных компонентов для стабильного выходного напряжения и длительного срока службы. Разумная компоновка, компактная структура, простота в использовании.

Параметры:

Модель: DD03AJTA

Входное напряжение: 2,7-5,5 В постоянного тока

Выходное напряжение: DC3.5-24V регулируемый

Максимальная выходная мощность: 30 Вт

Максимальный входной ток: 8А

Максимальный выходной ток: 6А

Ток: около 1 мА

Эффективность: ≥96%

Частота переключения: 600 кГц

Низкий порог UVLO: 2,6 в

UVLO высокий порог: 3,2 в

Рабочая температура: от-40 до 85 ℃

Температура хранения: от-55 до 150 ℃

Размер: 45x20x15 мм/1.8x0.8x0.6in

Вес: 9 г

Область применения:

Для QC2.0 3,0 зарядное устройство
for 3.7V Li-ion Lipo Lithium Battery 18650
Панорамная камера наблюдения с наклоном и зумом IP камера
Smart home / home automation
WI-FI розетка Интернета сетевое оборудование
LED Motor

Package List:

1 x Boost Module

Attention:
This is a high-power boost module. Please pay attention to the following when using:
1. The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.
2. The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3. Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.
4. Input voltage can not be greater than the maximum input range
5. Output power can not be greater than the maximum load for a long time
6. Input power must be greater than the output power, because the power consumption of the module itself
