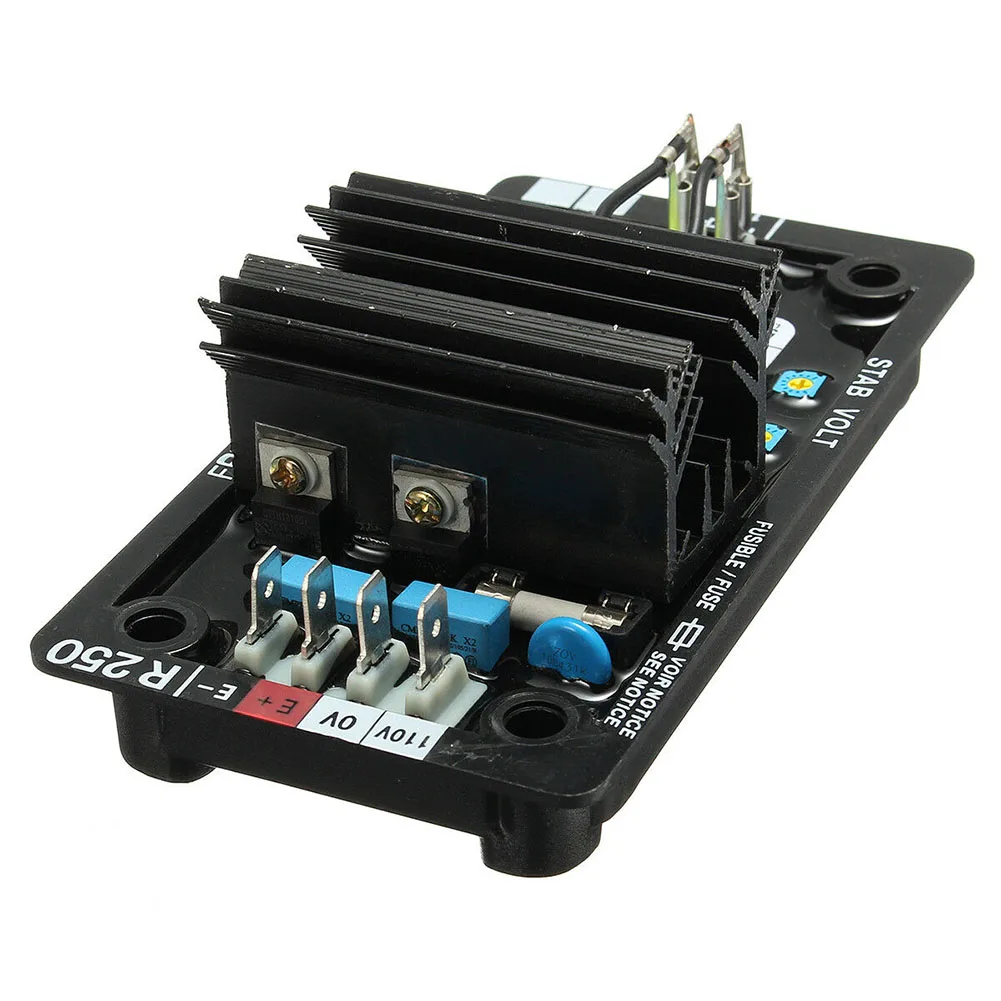

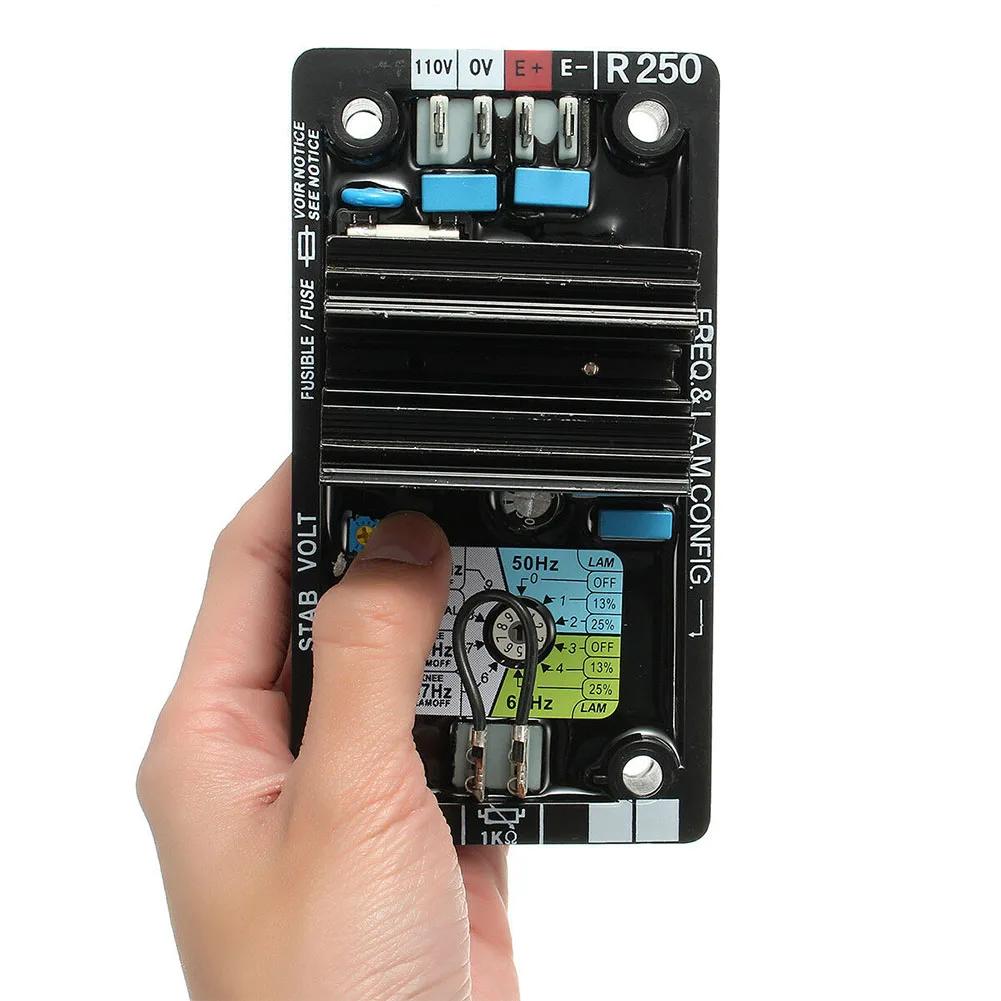

AVR R250 Module Stabilizer Components Generator Parts Electrical Automatic Voltage Regulator Universal Brushless For Leroy Somer

Features:
The R438 voltage regulator module can be powered by SHUNT excitation system.
The R250 is in compliance with: IEC, VDE, NEMA, BS, CSA, UL508 CE low voltage.
80-140V automatic voltage regulator is must-have item for your brushless generator, suitable for for Leroy Somer.
Voltage regulation ±0.1% at steady state and constant speed, phase to phase voltage sensing.
Programmable by valtage alternator generator, which is suitable for brushless generator.
Low frequency protection with voltage slow build - up function. With high break capacity fuse protection
Specifications:
Type: Automatic Voltage Regulator
Material: Plastic+Metal
Color: As Picture
Voltage setting: P1
Stability setting: P2
Current Continuous: 8A
Max Output: DC 90V/6A/10S
Power input: 80-140V
Sensing Input Voltage: 115V
Voltage regulation: ±1%
Applications to alternators: LSA 42.2, 43.2, 44.2
Package Included:
1 PC x Automatic Voltage Regulator
1 PC x English Manual
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
