Купить Автомобильный комплект Огнемет REV ограничитель запуска управления огнем

Описание

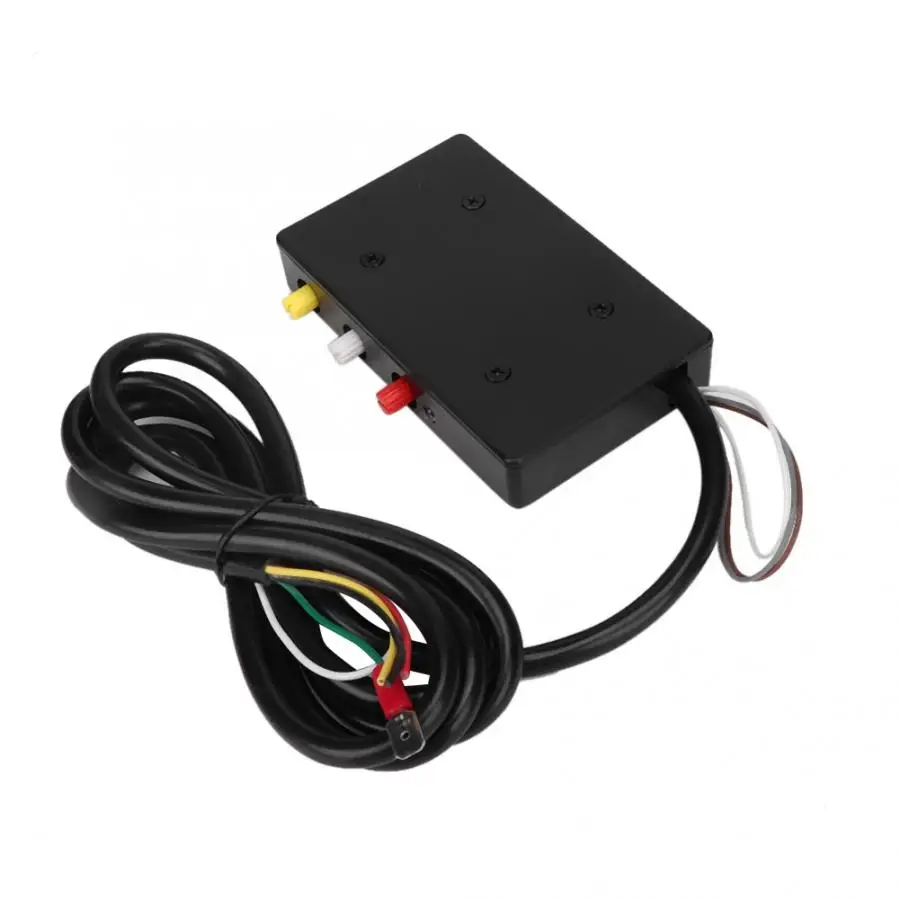

Car Exhaust Flame Thrower Kit REV Limiter Launching Fire Control

Features:

Brand new aftermarket exhaust flame thrower. Professional manufacturing, perfectly fit the original car. Made of quality material, corrosion resistant for durable use. Built to strict factory specifications, directly replace your old or broken one. Advanced manufacturing technologies to produce precise-fit.
Specification:
Condition: 100% Brand New
Item Type: Car Exhaust Flame Thrower
Color: As Pictures Show
Material: ABS plastic case
Fitment:
Fit for Nissan: CA18, SR18, CG13 / 10DE, SR20, RB20, RB25, RB26, VQ20 / 25/30, VG30 - All engines listed above are turbocharged and N/A retrofitted.
Fit for Subaru: All EJ20, EJ25 engines (requires 4 voltage diodes, included)
Fit for MITSUBUSHI: 4G63, 4G93, 4G92, 6A12, 6A13, 6G72
Fit for MAZDA: 13B, 13B-REW, B6-ZE, TURBO and N / A, 13BT
Fit for Toyota: 4AGE, 4AGZE, 4AFE, 2EET, 4EFTE, 3SGTE, 3SGE, 1ZZFE, 2ZZFE, 1GGTE, IJZGTE, 2JZGTE, 7MGTE

Package list:
1 x Exhaust Flame Thrower

Installation method:
Installation tool:
1. Three-meter electric meter 2. Frequency meter 3. Soldering iron 4. Scissors 5. Plus screwdriver 6. Wire 7. Needle-nose pliers 8. Electric drill

Direct ignition and distribution board ignition installation precautions:
1. Direct ignition:
2. Distribution panel ignition: any car system Please note that when installing this product, the outlet of the exhaust pipe tail section should not be too small. It is recommended to use the tail section exhaust pipe with a diameter of more than 5 cm, or an exhaust tail pipe.

Direct ignition installation precautions:
1. When the power of the original ignition coil is cut off, the "Computer Fault Light" cannot be illuminated.
2. When the fuel injection nozzle is installed, the positive and negative power should be paid special attention. The connection error may destroy the driving computer.
3. The line should pass through the fire wall to prevent the wire from being crushed and destroyed, resulting in a short circuit.
4. The "Core" in this product is installed at the bottom of the rear luggage compartment, close to the spare tire, and must be securely fixed.
5. The "igniter" in this product should be locked at the end of the exhaust pipe about one centimeter away from the outlet. At the lowest end, the ignition spacing should be controlled at 2mm.

Distribution board ignition installation precautions:
1. Find the correct position of the ignition coil in the distribution board.
2. The wiring of the ignition coil in the distribution panel to the fire-breathing control box in this product must not be mistaken, otherwise the possibility of burning the distribution board is extremely high.
3. When the original ignition coil power supply is cut off, the "Computer Fault Light" cannot be lit.
4. The line should pass through the fire wall to prevent the wire from being crushed and destroyed, resulting in a short circuit.
5. The in this product is installed at the bottom of the rear trunk, close to the spare tire, and must be fixed.

6. The "igniter" in this product should be locked at the end of the exhaust pipe about one centimeter away from the outlet. At the lowest end, the ignition spacing should be controlled at 2mm.

Injector wiring installation method Injector wiring installation method:
1. It should be known that the signal line of the injector is positive or negative, and most of the vehicles are negative.
2. How to know which one of the two lines of the nozzle connector is the signal line, first unplug the plug and then use the three meter to measure the positive and negative poles of the two wires, such as one positive power and one no power supply. The power supply should be the signal line. The other method is to use the frequency meter to measure the two wires of the injector circuit. The frequency is the signal line.
3. The positive and negative power of the injector should be connected to the color of the fire-breathing control box. Pay special attention to the wiring.
4. When the injector wiring is installed, the positive and negative power should be paid special attention. The connection error may burn the driving computer.

Injector wiring installation method Injector wiring installation :
1. Whether the wire connection of control box, a dragon fall off or poor contact
2. Whether foo switch is damaged, the switch plug whether drop
3. After ear plug whether have power supply, including positive and take iron
4. The control box to the car after the dragon ear wires, with or without broken. Take iron
5. After the car take an examination of the ear to igniter wire have broken. Take iron
6. Igniter on ignition distance is too big or too small 2 mm
7. Nozzle line connection errors into electricity (the ignition coil is whether the cathode wires were lighter head cut the lead to break
