MEGA 2560 R3 Arduino совместимая плата

880 руб.

Описание

Description

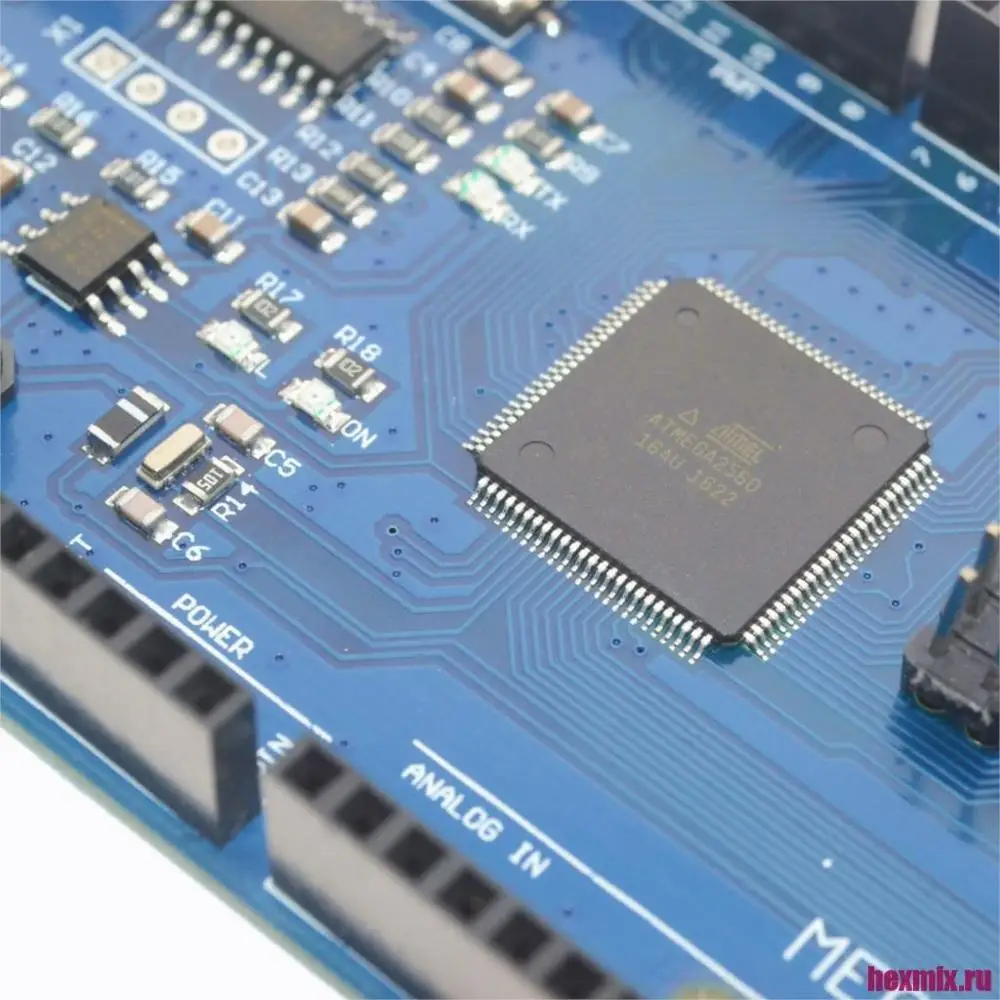

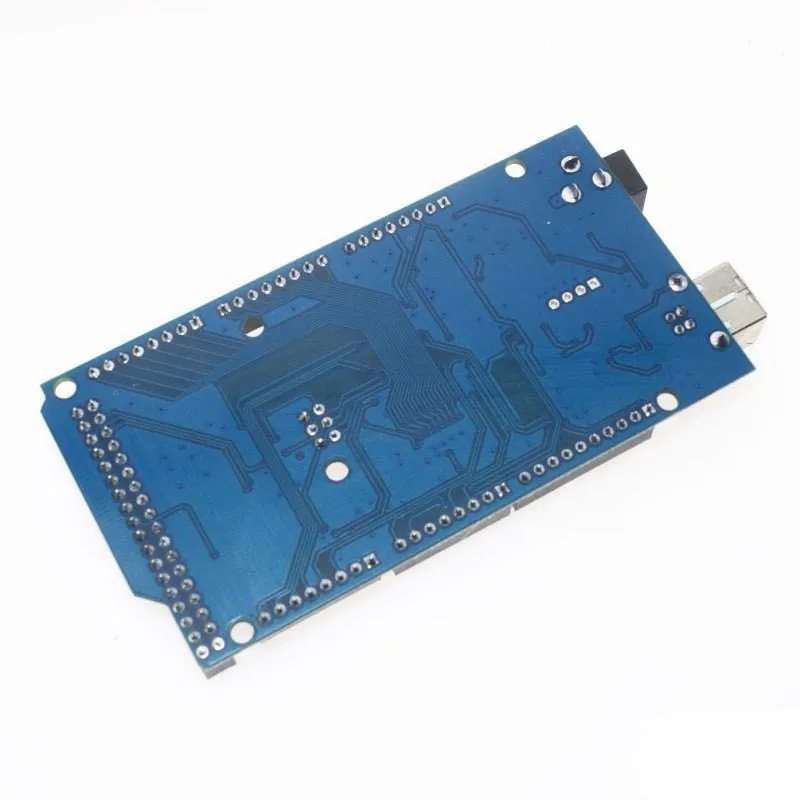

MEGA 2560 R3 Arduino compatible board built on микроконтроллере ATmega2560. Board has 54 digital input/output (14 of which can be used as output PWM), 16 analog inputs, 4 serial port UART, crystal oscillator 16 MHz, USB connector, power connector, ICSP connector and button reset. For work you need to connect platform to computer through USB cable or a powered by adapter AC/DC, or battery. Arduino Mega 2560 R3 is compatible with all motherboards expansion, разработанными for platform Uno or Duemilanove.
Brief features of the

Microcontroller ATmega2560 Operating voltage V Input voltage (recommended) 7-12В Input voltage (limit) 6-20В Digital Inputs/Outputs 54 (14 of which can работат also as output PWM) Analog Input pins 16 DC current through the input/output 40 Ma Constant current output 3.3 V 50 mA Flash Memory 256 KB (of which 8 КB used to boot) RAM 8 KB Volatile memory 4 KB Clock speed 16 MHz

The board size is:10,16 × 5,3 cm

Packing List:1x MEGA 2560 R3 Arduino compatible board
