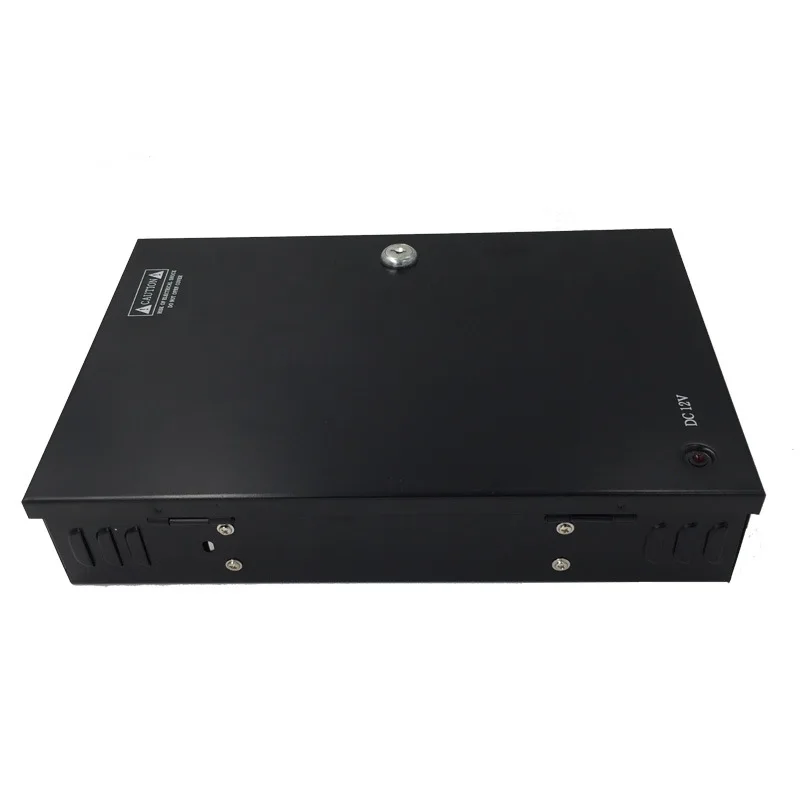

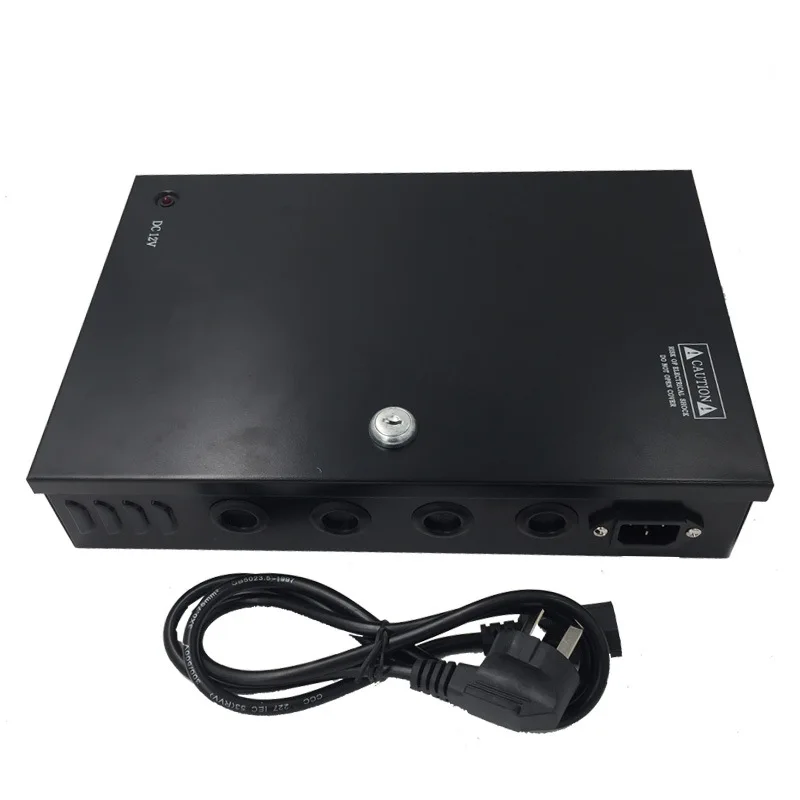

Монитор Ac/dc адаптер питания импульсный источник питания трансформатор интегрированный контроль чехол
1 691 руб.
Характеристики
- Габаритные размеры
- 315*215*62MM
- Тип штекера
- США / EU / Великобритания / AU
- Type
- Ac/dc Power Supply
- Model
- 12v30a18 Road
- Modulation Mode
- Pulse Width Modulation (pwm)
- Transistor Connection Mode
- Single-ended
- Input Voltage
- 110-220v
- Output Power
- 360w
- Output Voltage
- 12v
- Work Efficiency
- 90%
- Output Ripple Noise
- 100mv
- Output Voltage Accuracy
- 1%
- Voltage Adjustment Rate
- 15%
- Load Adjustment Rate
- 1%
- Output Current
- 30a
- Working Frequency
- 50/60 Hz
- Working Temperature
- - 10 +60 ()
- Shape Size
- 315*215*62mm
- Series
- No. 18 Chassis
- Power Supply Phase
- Two-phase
- Input Voltage Range
- 100-240v
- Loop Number
- Single-phase
- Scope Of Application
- Surveillance Camera
- Extended Function
- Led Lighting
- Working Environment Temperature
- - 10 +60
- Installation Mode
- Vertical Wall Hanging
- Weight
- 2.3kg
- Notes
- Security Monitoring Power Box
- Rated Power
- 360w
