Набор инструментов температурный электронный ИК 8x8 Датчик Портативный с корпусом DIY AMG8833 USB 5V тепловизор модуль камеры

Description:

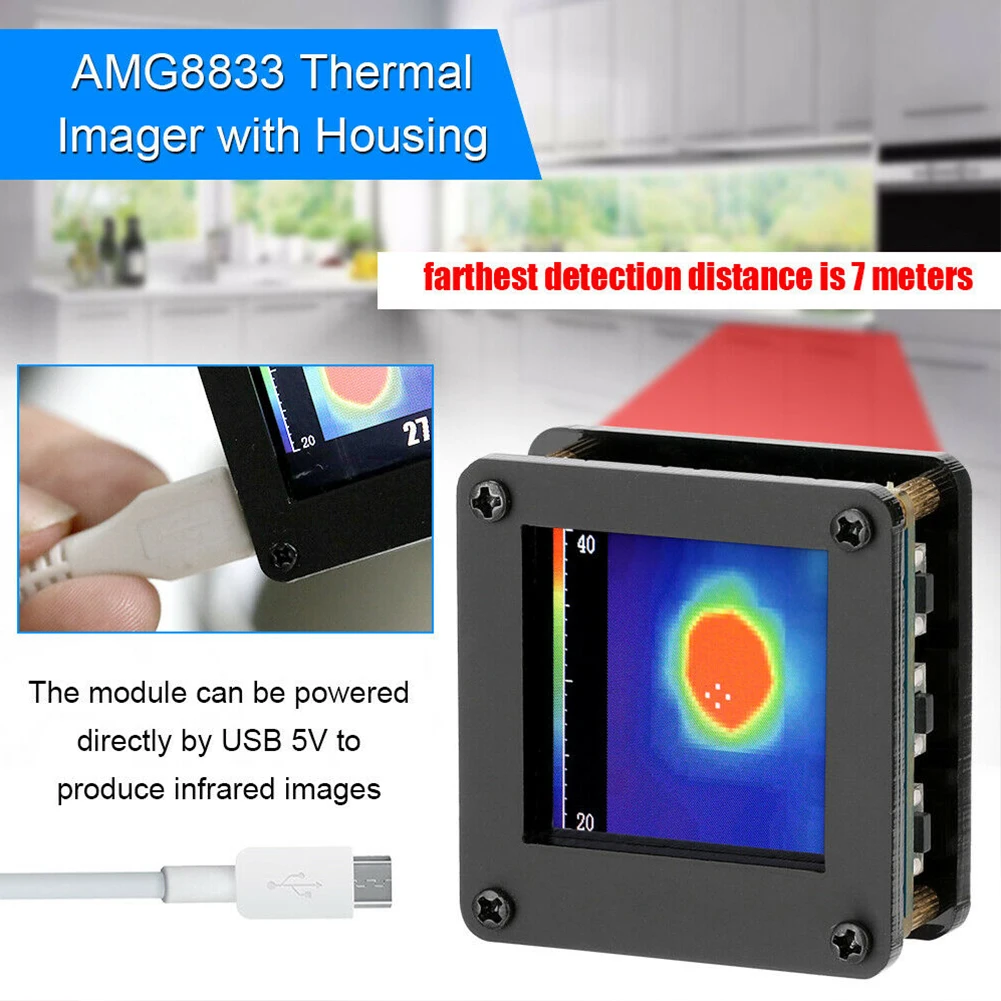

AMG8833 thermal imager with housing.
The module can be powered directly by USB 5V to produce infrared images.
The resolution is 8*8, and the farthest detection distance is 7 meters.
It can be applied to check electronic products.
Portable, high performance, easy to use.
Specification:
Material: PCB
Color: black
Size(approx): 38 * 36 * 17mm
Temperature accuracy:
High performance type high : typical ±2.5℃ ±4.5℉
High performance type low : typical ±3.0℃ ±5.4℉
Human detection distance: 7m or less (reference value) 22.966 ft
NETD:
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical axisgap: within typical ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 1²C (fast mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (1²C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉
Package:
1 pc x Thermal imaging camera
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
