Quick Digital Portable Multimeter Capacitance Meter Lightweight Inductance Handheld Professional USB Powered LCD Display Stable

Description :

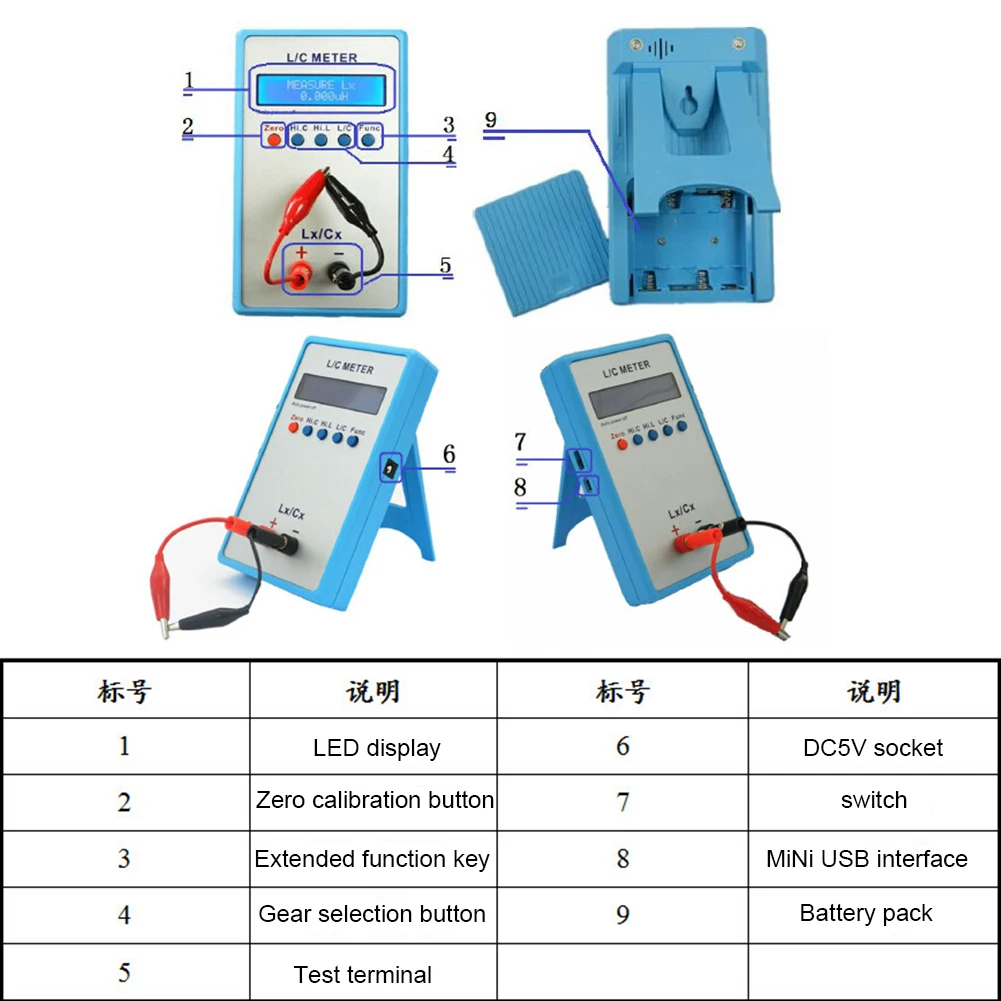

LC200A Digital L/C Handheld Inductance Capacitance Multimeter with USB Cable
Modle : LC200A
Handheld portable, low-power.
5 minutes intelligent auto power-off function.
High speed microcontroller’s accurate computation
Big Capacitance measuring range1uF-100mF/minimum resolution:0.01UF
Especially qualify in microwave manufacture and measuring switching power supply transformer, filter inductance and so on
All range position are automatic measuring ranges, it is easy to operate
Specification :
Measurement accuracy : 1%
Capacitance measuring scope : 0.01 pF - 10uF
The minimum resolution : 0.01 pF
Big Capacitance measuring scope : 1uF-100mF
The minimum resolution : 0.01uF
Inductance measuring scope : 0.001 uH - 100mH
Big inductance measuring scope : 0.001 mH - 100H
The minimum resolution : 0.001uH
Test frequency : L/C about 500KHZ Big inductance about 500HZ(can display current test frequency value)
Effective display digits : 4 digits
LCD display mode : 1602
Power supply : mini USB interface 4X1.5V 5# battery or DC 5V Power Supply
Power Supply Work Voltage : 110 - 240V
How to use:
1. Before measuring the inductance, firstly short-circuit the test clip to zero, which can ensure accurate measurement;
2. Before measuring the capacitance, first open the test clip to clear the zero to ensure accurate measurement;
3. When measuring the chip capacitor, you can clip a piece of paper with the same size as the capacitor in the patch test clip, and then clear it again, the result is more accurate;
4. When measuring the electrolytic capacitor, please measure after discharging;
5. The test line should not be replaced with a longer test line. The shorter the test line, the smaller the interference and the higher the accuracy.
Package included :
1x LC200A L/C Inductance Capacitance Digital Meter
2 x Connect Cable
1x Power Cable
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
