Описание
Ws16 programmable time relay, intended to create an independent time delay and ensure определённой sequence work elements circuit. Time relay is applied in cases, when need to automatically perform some action do not immediately after the appearance of a control signal, and through the set time.
Programmable time relay, suitable for переодического on ventilation, heating, lighting, pump water and other devices.
Features LED indicator display the current report time, modes of operation and adjustment.
Time relay Ws16 has seven programmable modes.
Characteristics Of Ws16:

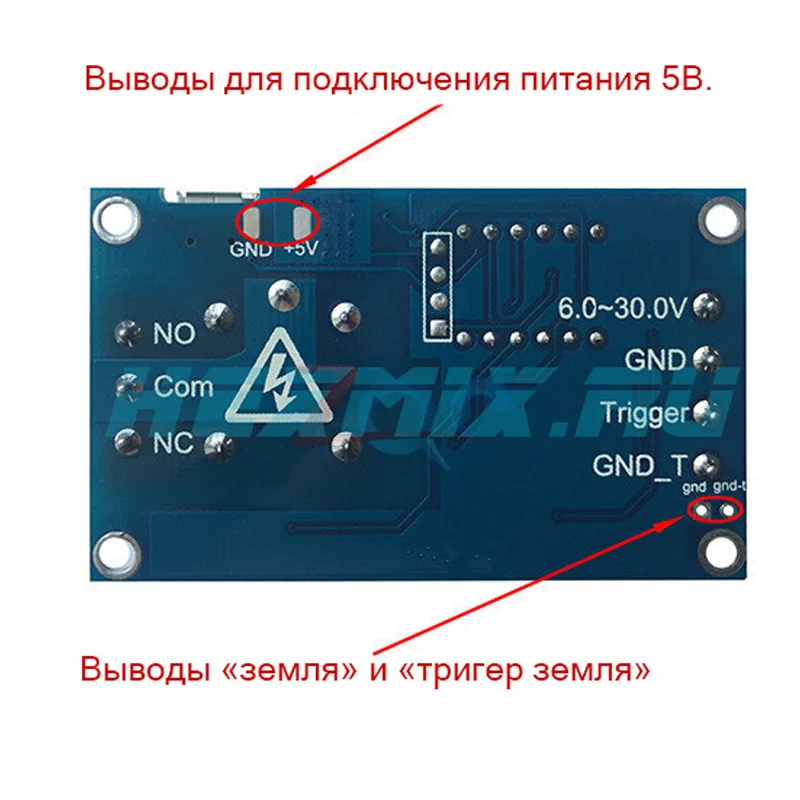

Power supply voltage: DC 6-30в or V via Micro USB connector Voltage control signal: DC 3-24 IN. Коммутируемая power: 10A 250B Programmable Modes: 7 Operating temperature:-40-85 Dimensions: 62x38x20mm.Special note: relay outputs are passive contact, just switch.
Circuit power:
