Описание

Запчасти для 3D-принтера, стабильные аксессуары, мини TMC2209 V2.1, комплект тестера, бесшумный модуль, пластиковый USB последовательный адаптер, шаговый двигатель

Features:
The TMC2209 is an ultra-quiet motor driver IC for two-phase stepper motors.
The TMC2209 is pin compatible with many legacy drivers and the TMC2208. TRINAMICs' advanced StealthChop2
choppers ensure noise-free operation of the motor for high efficiency and motor torque.
Its fast combination of current regulation and resonance suppression enables high dynamic motion.
The built-in power MOSFET handles motor currents up to 2A RMS with protection and diagnostics for stable and reliable operation.
A separate pulse direction allows the drive to be set up for noise-free operation
and very precise operation for a cost-effective and competitive solution.
TMC2208v1.0/TMC2208 V1.2/TMC2209 V2.0 can be used directly with tester.
With the TMC2209 Configurator you can change the settings and programs the OTP
(One-Time-Programmable) memory of a Trinamic TMC2209 via the UART interface.
Specifications:

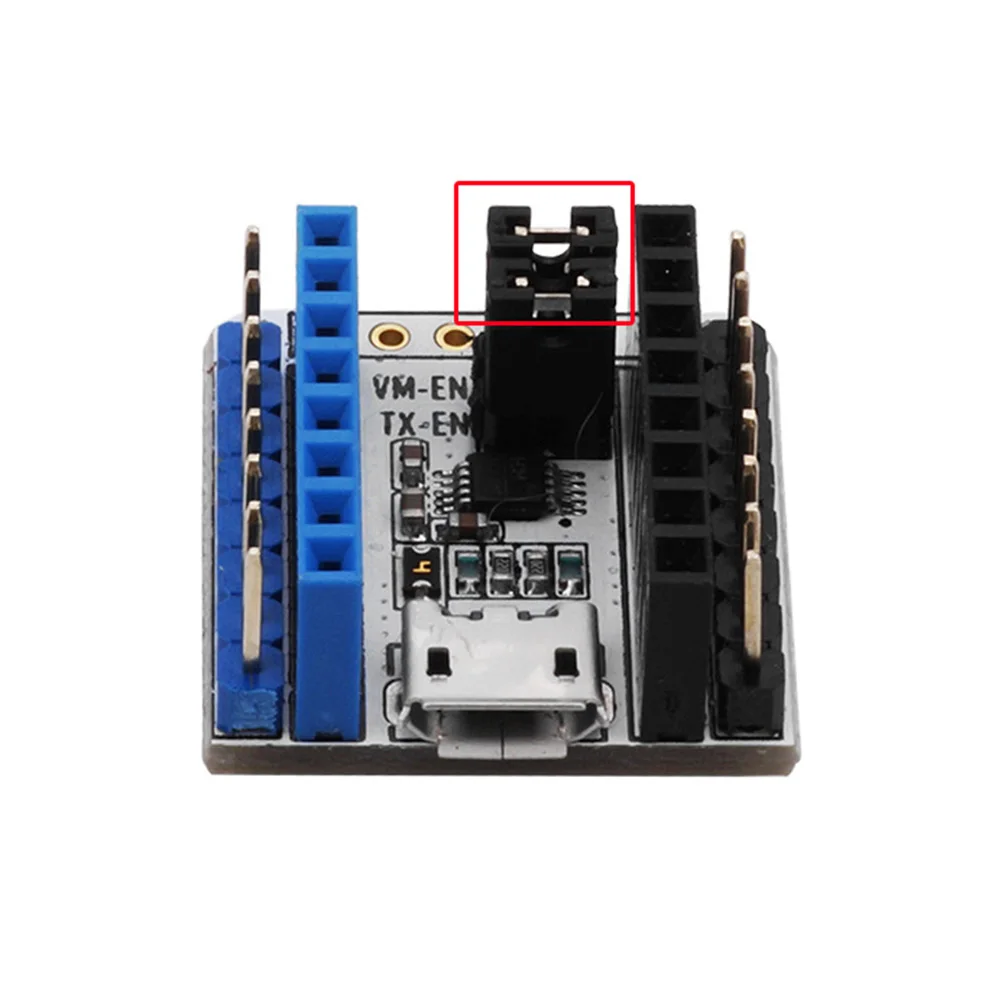

Model: TMC2209v2.1+ Tester module
Material: Plastic, Metal
Color: As Shown
Current: 1.7A
Voltage: 5.5V
Size: (Approx) 4*3*2cm, 2*1.5*2cm
Package Included:
1 PC x Tester Module
2 PCs x Jumper Cap (device on the module)
1 PC x TMC2209 V2.1 Driver
1 PC x USB Cable
1 PC x Heat Sink
1 PC x Screwdriver
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
3. The jumper follow to the PDN_UART pin has to be closed on the TMC2209 SilentStepStick to enable the pin access via the pin header.
To run the programs:
Install ScriptCommunicator
Download TMC2209.scez
Start the TMC2208.scez file with the ScriptCommunicator: ScriptCommunicator TMC2209.scez
Choose the right serial port and click Connect
Modifications in the Configurator are directly transmitted
Notes:
The OTP bits can be programmed only one time.
If you enable spreadCycle then TOFF cannot be 0.
